Components, IC DIP-8, IC SOP/DIP
FSL206MR FSL206 DIP-8
FSL206MR
SMPS Power Switch
The FSL206MR integrated Pulse Width Modulator (PWM) and SenseFET is specifically designed for high-performance offline Switch Mode Power Supplies (SMPS) with minimal external components. This device is integrates high-voltage power regulators that combine an avalanche-rugged SenseFET with a current mode PWM control block.The integrated PWM controller includes: 7.8V regulator for no bias winding, Under-Voltage Lockout (UVLO) Protection, Leading-Edge Blanking (LEB), an optimized gate turn-on/turn-off driver, EMI attenuator, Thermal Shutdown (TSD) protection, temperature- compensated precision current sources for loop compensation, and fault-protection circuitry such as; Overload Protection (OLP), Over-Voltage Protection (OVP), Abnormal Over- Current Protection (AOCP) and Line Under-Voltage Protection (LUVP). During startup, the FSL206MR offers good soft-start performance.
SKU: n/a -
Components, IC SOP/DIP, TV Chip
AS19-H1G AS19-H1 AS19-H AS19 ECMOS QFP-48
E-CMOS AS19-H1G 18+1 Channel Voltage Buffers for TFT LCD.

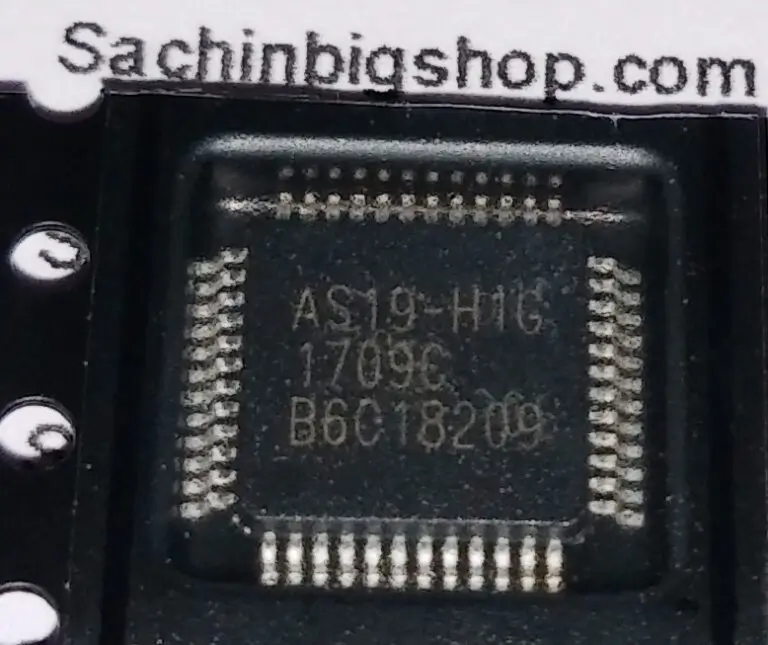

The AS19-H1G is an 18+1 channel voltage buffer that buffers reference voltage for gamma correction in a thin film transistor liquid crystal display (TFT LCD). This device AS19-H1G incorporating a Vcom amplifier circuits, four rail to rail buffer amplifier circuits (the highest two stage and lowest two stage) and 14 buffer amplifiers circuits. The AS19-H1G is available in a space saving 48-pin TQFP package, and the operating temperature is from –20’C to +85’C. It is suitable for TFT-LCD Reference Driver
SKU: n/a -
Components, PCB board, Universal Card, Voltage Regulator
5V 700mA (3.5W) isolated switch power supply module AC-DC buck step-down module 220V turn 5V
Components, PCB board, Universal Card, Voltage Regulator5V 700mA (3.5W) isolated switch power supply module AC-DC buck step-down module 220V turn 5V
Specifications:Condition: brand newQuantity: 1PCSInput voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 vImput current: 0.0273A(AC110V) 0.014A(AC220V)Input Inrush Current: 20AOutput voltage: DC 5V (+ / – 0.2 V)Output current 700 mAPower 3.5 WOperating temperature -20~60 degreeRelative humidity 40-90%RHOutput 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mVOutput power:0-4W(DC current)Output efficiency: 80%Switch machine overshoot: MAX 10%SKU: n/a -
Components, IC SOP-8, IC SOP/DIP
FAN7602 FAN7602B FAN7602MX SMD Chip SOP-8
DescriptionThe FAN7602 is a green current mode PWM controller. Itis specially designed for off-line adapter application,DVDP, VCR, LCD monitor application, and auxiliarypower supplies.The internal high-voltage start-up switch and the burst-mode operation reduce the power loss in standby mode.Because of the internal start-up switch and the burstmode, it is possible to supply 0.5W load, limiting theinput power to under 1W when the input line voltage is265VAC. On no-load condition, the input power is under0.3W.The maximum power can be limited constantly, regard-less of the line voltage change, using the power limitfunction.The switching frequency is internally fixed at 65kHz andthe frequency modulation technique reduces EMI.The FAN7602 includes various protections for the sys-tem reliability and the internalsoft-start prevents the out-put voltage overshoot at start-up.SKU: n/a
