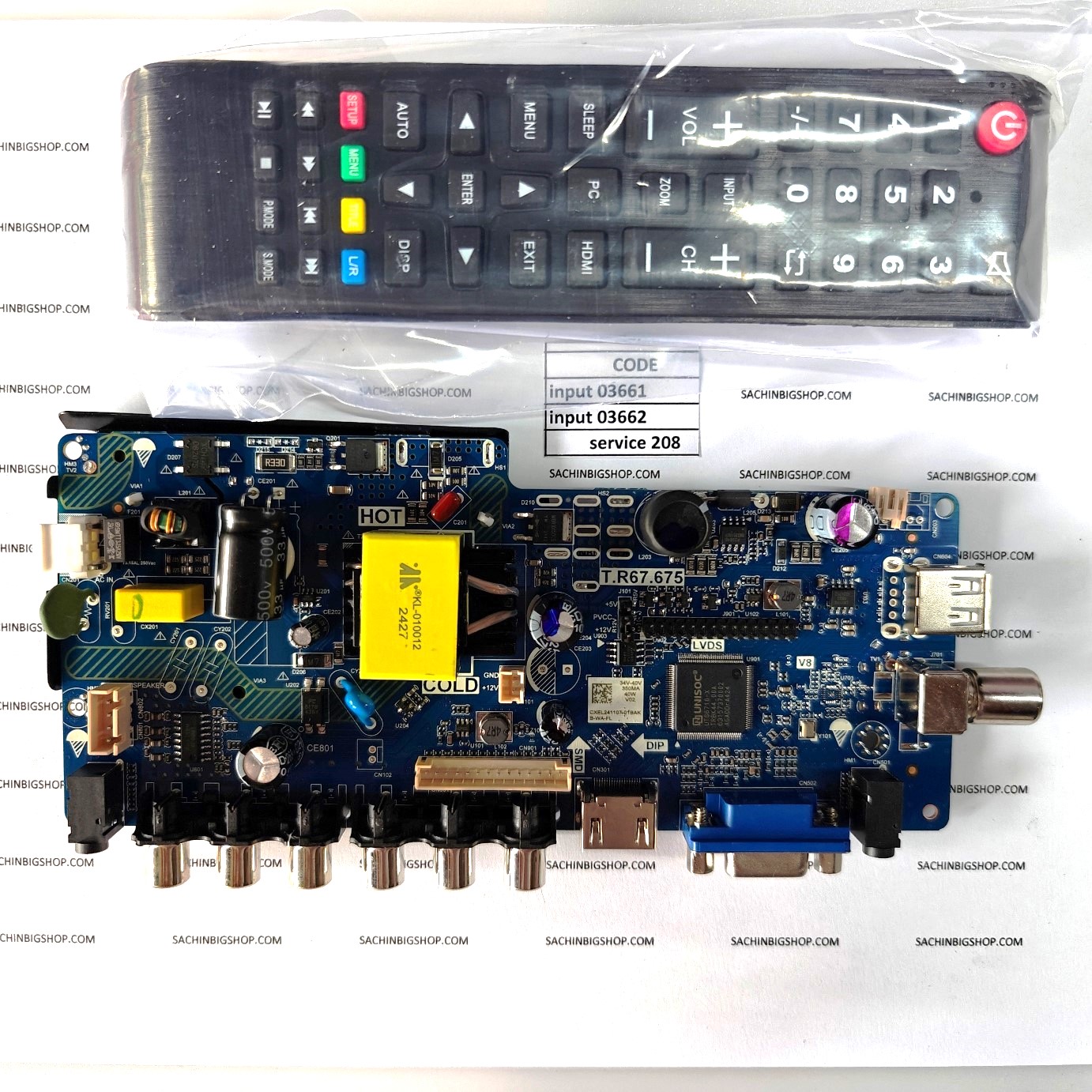

T.R67.675 24 Inch Combo Motherboard

Description

T.R67.675 24 Inch Combo Motherboard

The T.R67.675 is a highly versatile, universal analog LED/LCD TV combo motherboard specifically engineered for 14-inch to 24-inch screens. It serves as an integrated 3-in-1 replacement solution, combining the main television processing system, an SMPS power supply module, and an LED backlight driver circuit into a single physical PCB. Its defining feature is driver-free operation, allowing technicians and DIYers to switch panel display resolutions instantly using remote control codes instead of burning firmware via a USB programmer.

• Screen Compatibility: Seamlessly fits compact LED and LCD display panels spanning from 14 to 24 inches.
• Resolution Support: Supports standard HD Ready (1366 × 768) and Full HD (1920 × 1080) configurations.
• Aspect Ratios: Natively compatible with standard 4:3 widescreen, 16:9 cinematic, and 16:10 monitor layouts.
• Video Refresh Formats: Fully supports standard NTSC (60Hz) and PAL (50Hz) video decoding paths.
• Connectivity Interfaces: Equipped with composite A/V inputs, a multi-format USB playback slot, and high-definition HDMI ports.

• Changing Panel Resolutions: Press Source / Input followed by the specific numerical code mapped to your screen’s resolution type (e.g., standard code strings like Input + 1331 for non-HD configurations).
• Accessing the Factory Service Menu: Press the Source button, followed by the specific factory access digits to adjust hidden settings. From this system panel, you can modify hardware configuration metrics like Mirroring/Flip settings (to fix upside-down displays) or LVDS data mapping (to resolve pixelated or incorrect color rendering).
